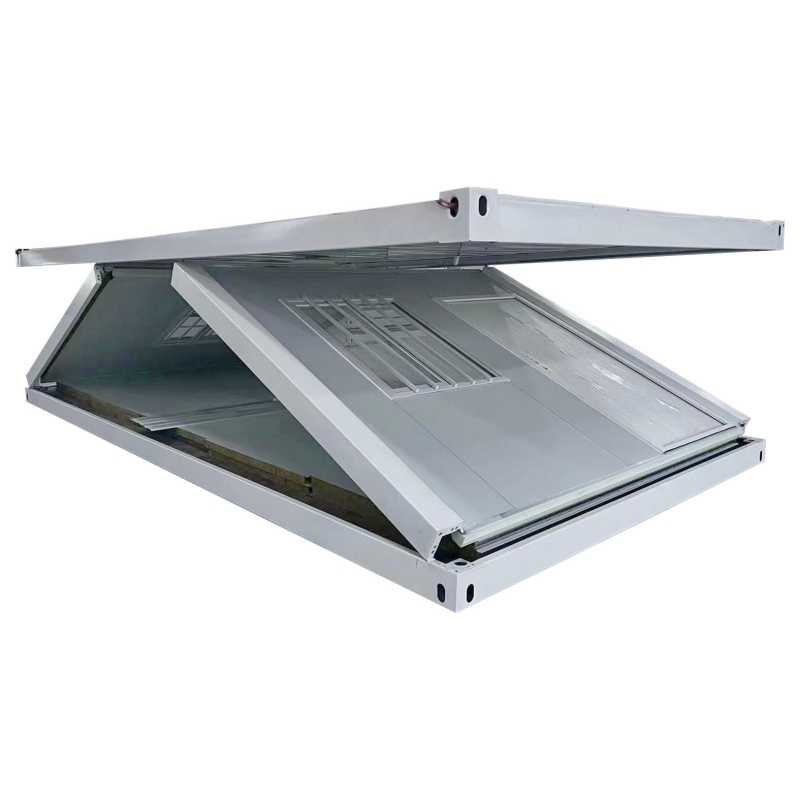

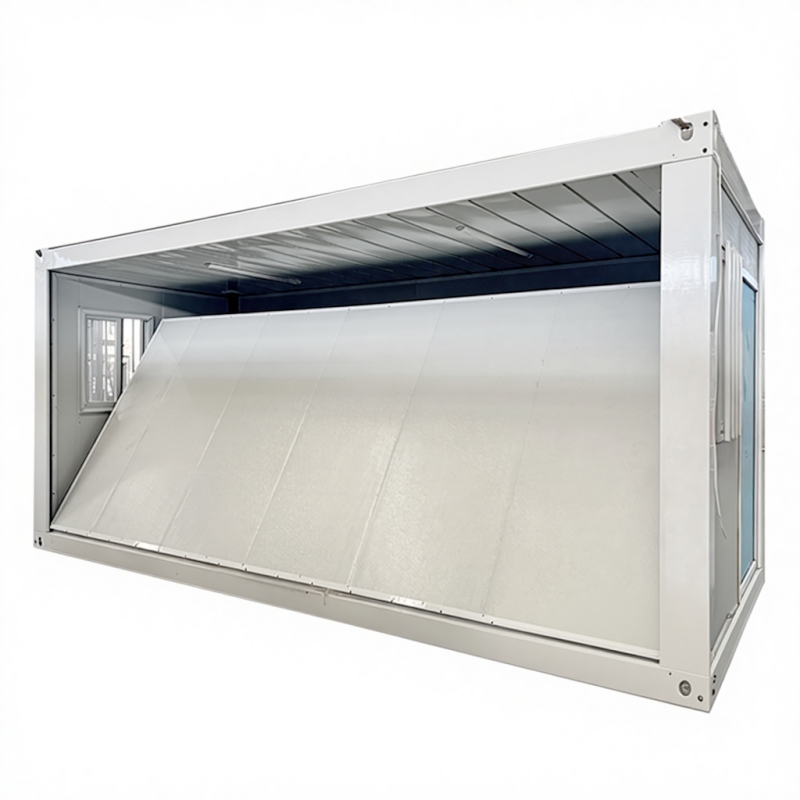

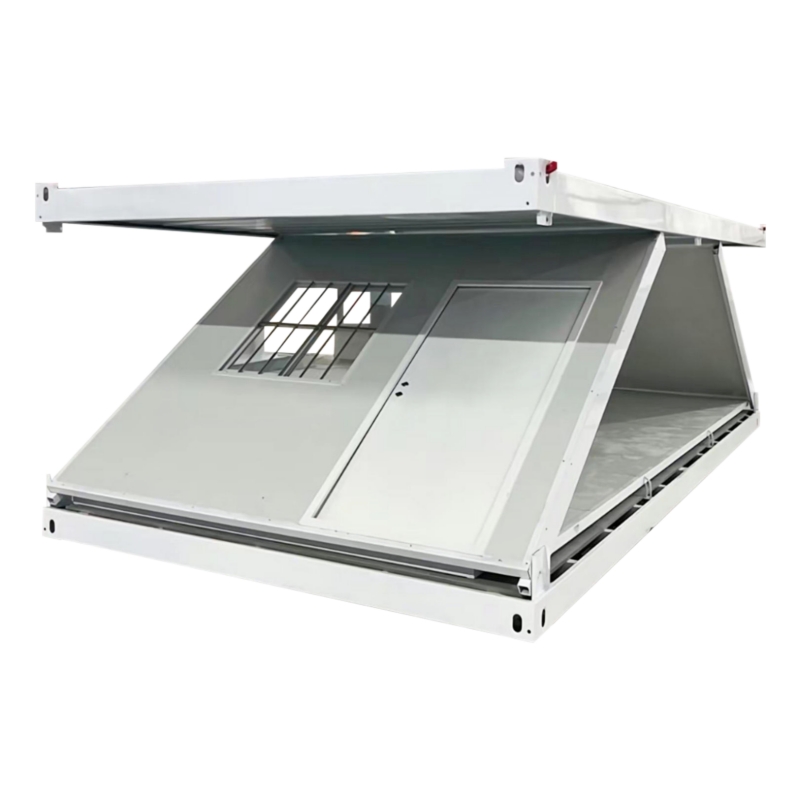

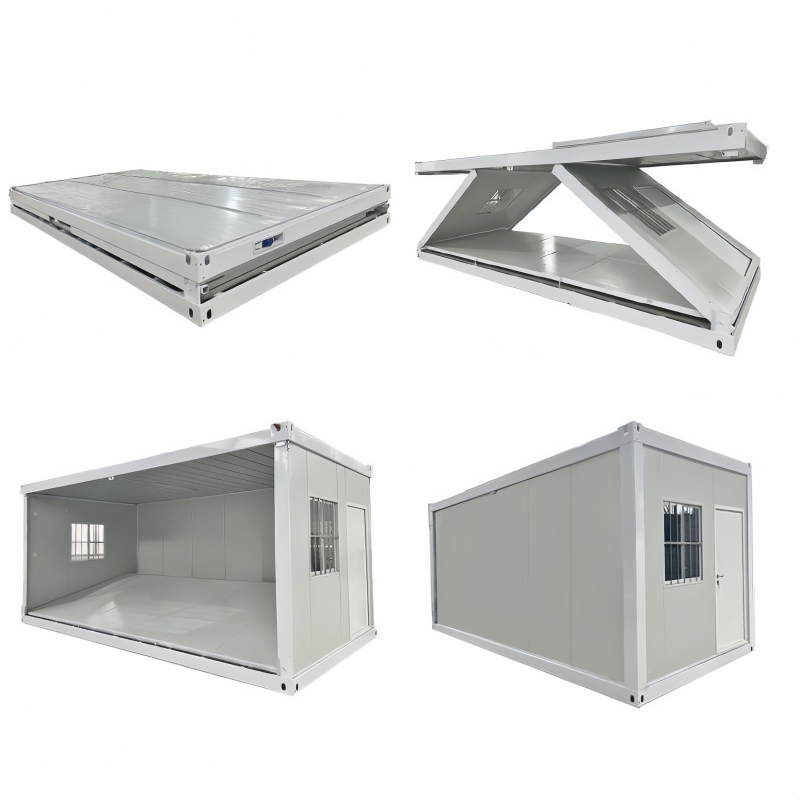

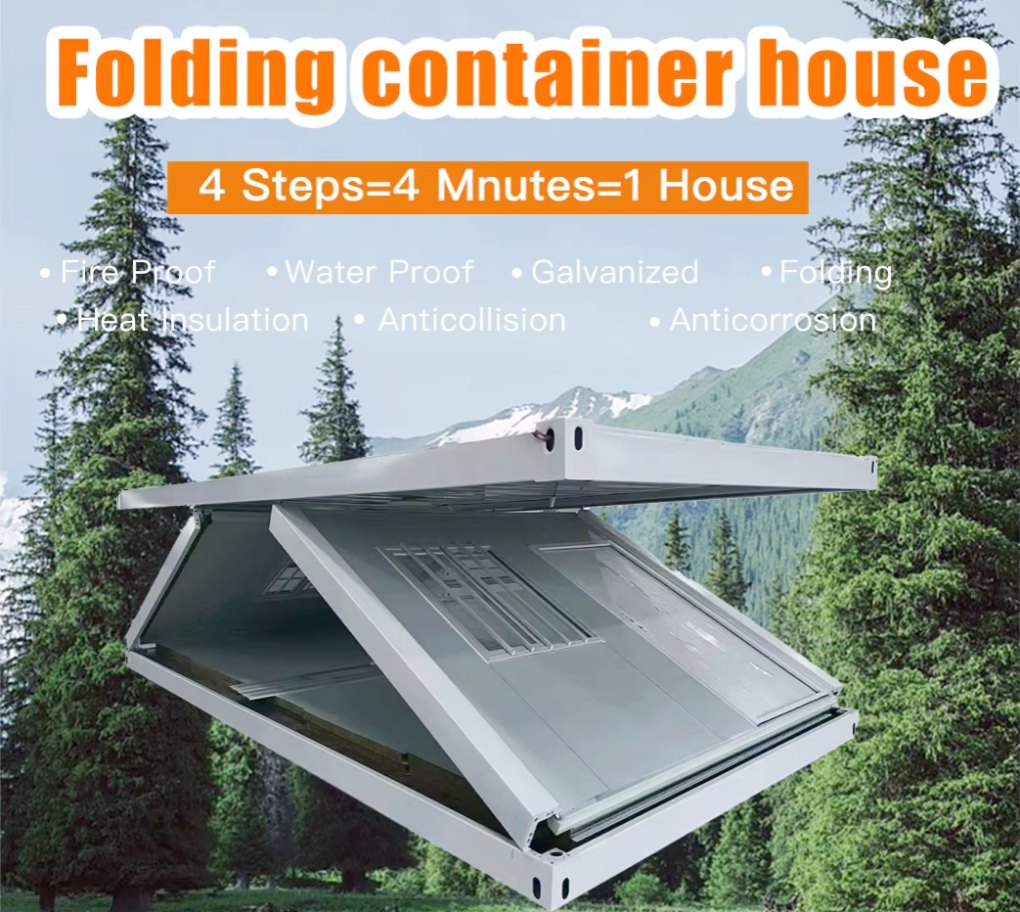

Z type folding container house is specifically designed for rapid installation, convenient transportation and flexible application. Unlike traditional container houses, the Z-type structure features a unique folding design that allows the walls and roof to collapse inward in a “Z” shape. This smart engineering greatly reduces transportation volume and improves loading efficiency, making it an ideal choice for international shipping and large-scale projects.
제품 번호 :
TSH-80프레임 구조 :
Galvanized steel structure, sandwich panel벽 패널 :
50mm/75mm/100mm Rock Wool, EPS,PU sandwich panels지붕 하중 :
3-4mm hot-dip galvanized steel structure with 4 corner castings and 50mm-75mm EPS or PU sandwich panels; galvanized stel roof covering.창문 :
Made of PVC/aluminium, broken bridge aluminum, double-glazed glass, thickness 5/8/5mm문 :
Can be customized according to needs

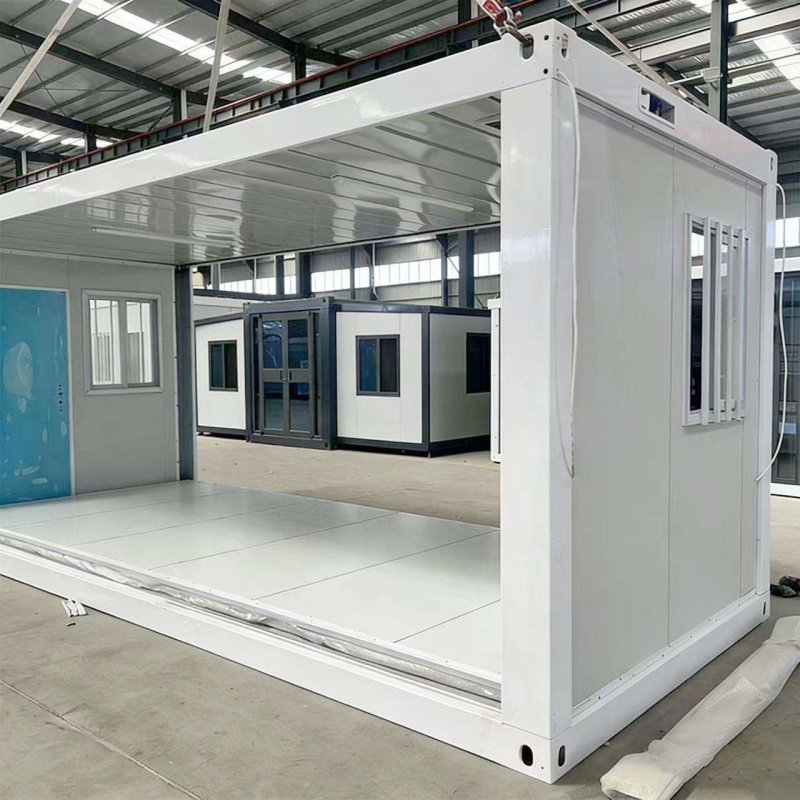

The main structure of the Wholesale 20ft Z Folding Container House is usually constructed with a high-strength galvanized steel frame, which ensures excellent durability, corrosion resistance and long-term stability. The wall panels are commonly made of sandwich panels with insulation materials such as EPS, rock wool, or PU, providing reliable thermal insulation and soundproof performance. The roof and floor systems are carefully designed to ensure waterproofing and structural safety in different climate conditions.
1) All steel parts and the size of Prefabricated Z Shaped Folding Container House can be made according to clients' requirement.
2) The Z-type 20ft Foldable Office is low cost, durable structure, convenient relocation , and environment-protection.

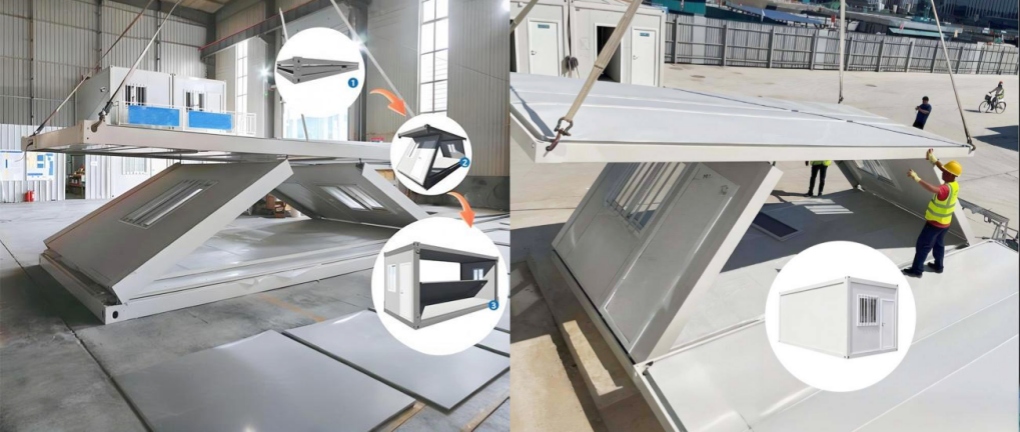

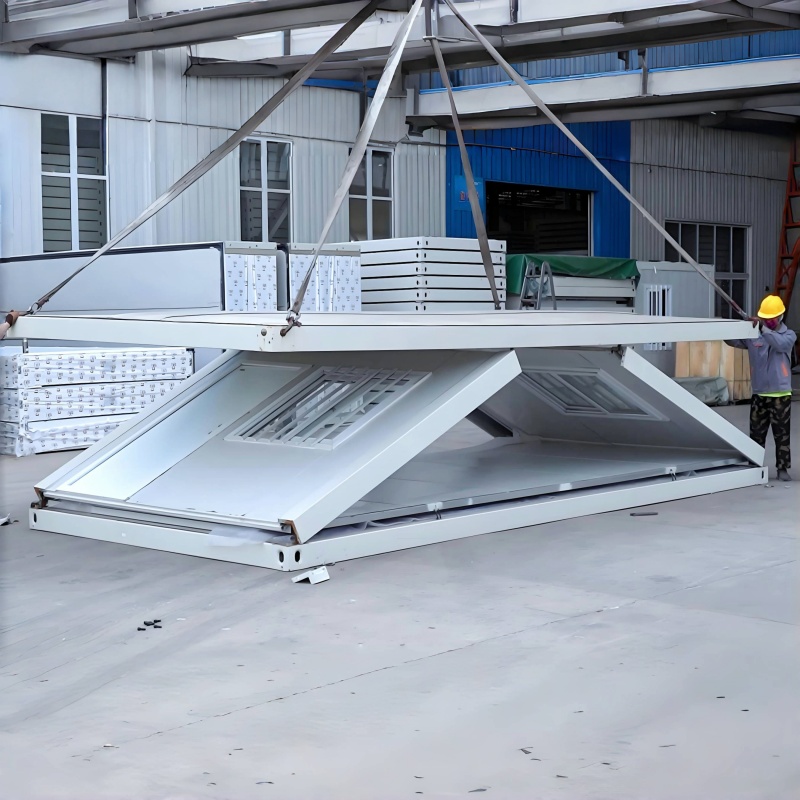

3) The material of Z Foldable Container House is light and easily to installation. One 20 square meter flat pack house 4 workers 0.5 hours
finished installation, save manpower and time.
4) All the materials of prefab house can cycle-use, Meeting the require of environment protection in the world. Special is in the large-scale house projects in the developed region.
5) We used the high quality galvanized sheet and rock wool as the materials of the wall and roof .So the prefab house is good for fire proofing, water proofing, etc.
6) Support frame system of steel prefab house: Q235B China standard steel structural. Square tube, Channel steel, etc.
The advantages of this Z Type Foldable Container House for Apartment:
1. Install in 30 minutes
2. Quick disassembly and assembly
3. Multi scenario applications:offices/events/warehouses/shops/hostels/tea rooms, etc
4. Better insulation and sealing properties
5. Folding thousands of times
FAQ:
Q1: Are 20ft Folding Container Houses durable and weatherproof?
A1: Yes, they are designed with galvanized steel frames and insulated panels that are waterproof, wind-resistant, and fire-rated. They perform well in various climates and can withstand harsh conditions.
Q2: Can I customize the layout or interior features?
A2: Absolutely. You can customize wall partitions, windows, doors, flooring, electrical systems, plumbing, bathrooms, kitchens, and even solar energy systems based on your needs.
Q3: What are the standard dimensions of one unit?
A3: The most common size is 20 feet: approximately 5.85 meters (L) × 2.46 meters (W) × 2.51 meters (H) when unfolded, providing around 14–18 square meters of usable space.
Q4: Do I need a foundation to install a foldable tiny house?
A4: No permanent foundation is required. A flat, stable surface is sufficient. However, for long-term use or uneven terrain, a simple concrete pad or steel support feet is recommended.
Q5: Can the modular house be folded and reused?
A5: Of course, The folding mechanism and structure are designed for multiple uses. With proper handling and maintenance, the unit can be folded and relocated many times without affecting performance.
Q6: Is the structure environmentally friendly?
A6: Yes. The frame is made from recyclable steel, and energy-efficient insulation panels help reduce heating and cooling needs. Solar power systems can also be added to support sustainable living.
Q7: Can units be combined or stacked?
A7: Yes. Multiple units can be linked horizontally or vertically (up to two or three floors) to create larger spaces, including dormitories, office buildings, classrooms, and more.
