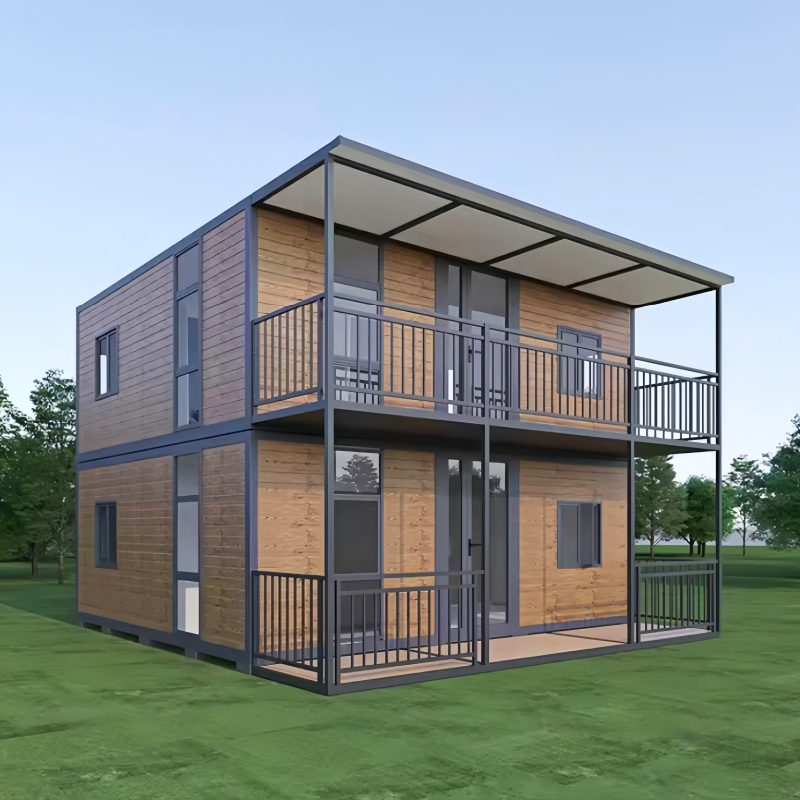

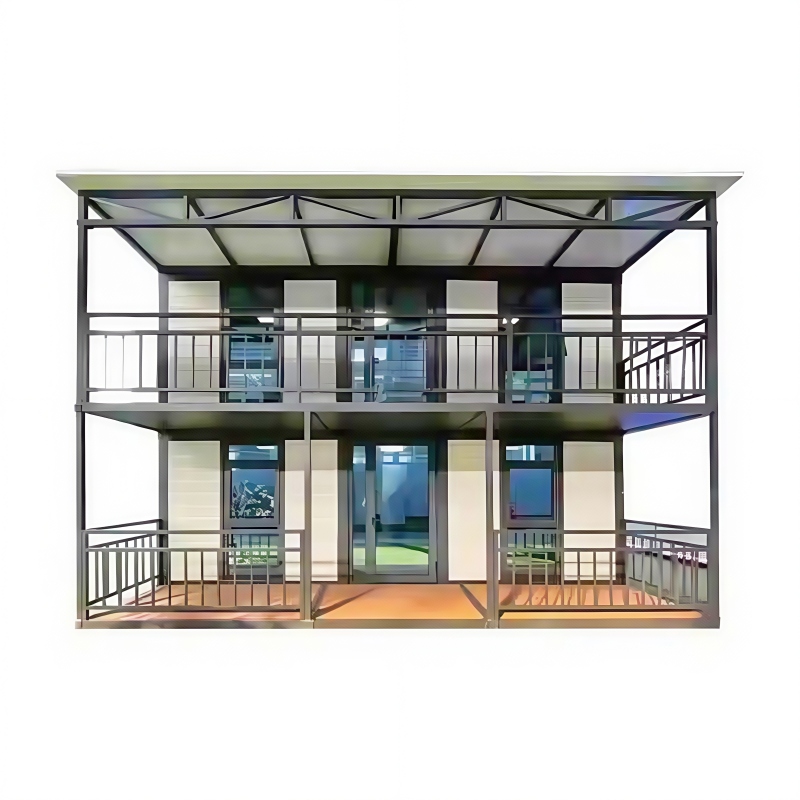

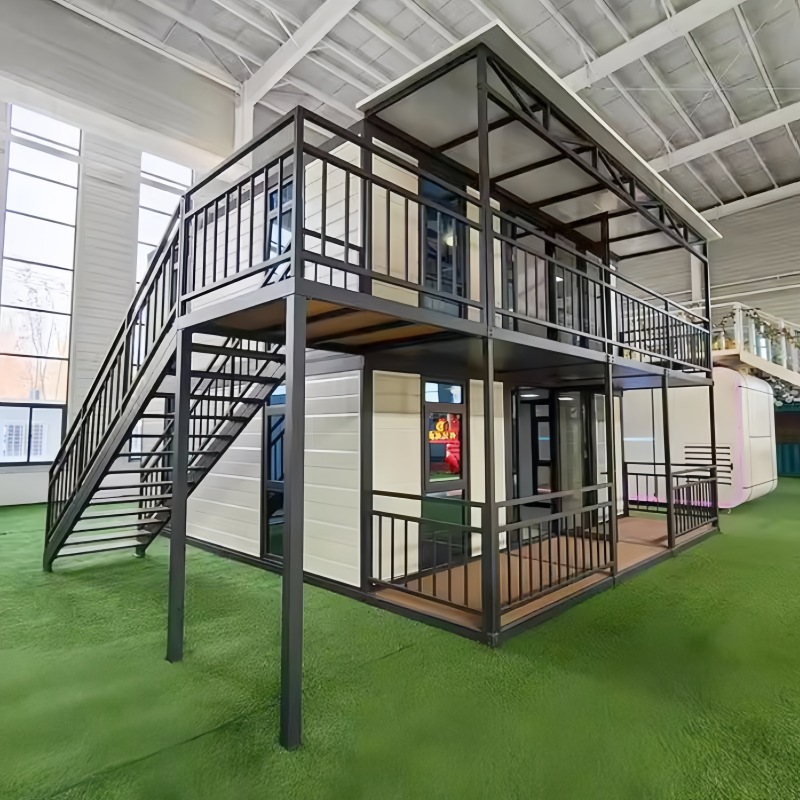

Modular Two Story Expandable Prefab Houses With Balcony
Expandable container houses
Modular Two Story Expandable Prefab Houses With Balcony
Modular Two Story Expandable Prefab Houses With Balcony
Modular Two Story Expandable Prefab Houses With Balcony
Modular Two Story Expandable Prefab Houses With Balcony
Modular Two Story Expandable Prefab Houses With Balcony

Modular Two Story Expandable Prefab Houses With Balcony

Prefabricated Expandable Container House, also known as Double-Wing Expandable Container House, uses a light steel hot-dip galvanized frame as a supporting structure to ensure the stability and safety of the overall structure.

The exterior is covered with environmentally friendly composite panels, which are both lightweight and have good insulation, thermal and acoustic insulation properties.

  • 제품 번호 :

    TSH-EH011
  • 주문(MOQ) :

    1
  • 제품 원산지 :

    China
  • 치수 :

    Customizable size
  • 프레임 구조 :

    Galvanlized Steel Frame
  • 창문 :

    Customized Window
  • 문 :

    Customized Door
  • 지진 저항 :

    Grade 8
  • Share to :

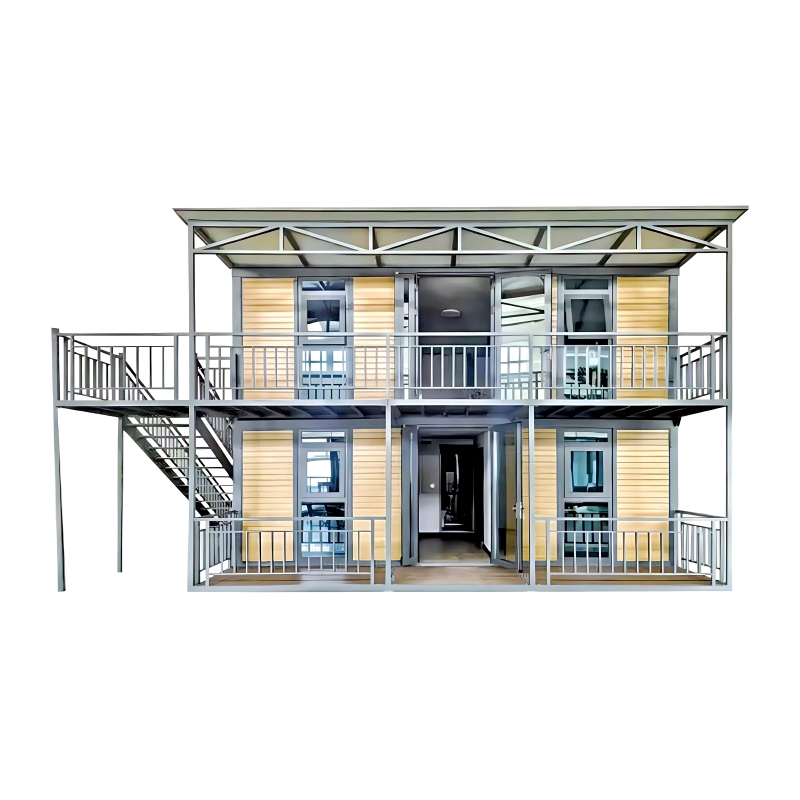

As a kind of detachable and movable modular house, the double wing 2 Storey Portable Expandable Prefab House is made of high-strength materials andadvanced insulation technology, which is both safe and durable. With solar panels and a wind power system, the 2-Story Folding Container House can meet your daily energy needs, allowing you to enjoy a comfortable life while also contributing to environmental protection.




BASIC FEATURE(20FT)
EXTERNAL DIMENSION(MM)
5900*6320*2480
FOLDING STATE (MM)
5900*2200*2480
TOTAL MASS(KG)
2900


BASIC FETAURE(40FT)
EXTERNAL DIMENSION(MM)
11800*6320*2480
FOLDING STATE (MM)
11800*2200*2480
TOTAL MASS(KG)
4700
OTHER SIZE
CUSTOMIZED ACCORDING TO REQUIREMENTS





FRAME STRUCURE
STEEL STRUTURE
Q235 GALVANIZED STEEL FRAME
MIDDLE ROOF BEAM
Q235 GALVANIZED STEEL FRAME(2.5-3MM)
MIDDLE BASE BEAM
Q235 GALVANIZED STEEL FRAME(2.5-3MM)
SIDE BEAM
Q235 GALVANIZED STEEL FRAME(1.5-2MM)
SIDE WALL FRAME
Q235 GALVANIZED STEEL FRAME(1.5-2MM)
MIDDLE PILLIAR
Q235 GALVANIZED STEEL FRAME(2.5-3MM)
SUB- FRAME
Q235 GALVANIZED STEEL FRAME(1.5-2MM)
PROTECTIVE COATING FOR INTEGRAL FRAME
ELECTROSTASIC SPRAYING/WHITE PLASTIC POWDER SPRAYING


TOP OF CONTAINER

EXTERNAL ROOF BOARD
FIREPROOF AND FLAME-RETARDANT EPS INSULTED SANDWICH PANEL&ROOF CORRUGATED VENEER
INTERNAL CELLING BOARD
0.25 TYPE-200 CELLING




WALL PANEL

HEAT PRESERVATION OF MIDDLE TOP
50MM FIREPROOF AND FLAME-RETARDANT INSULATION SANDWICH PANEL/COLOR STEEL PLATE WITH GLASSFILAMENT COTTON
SIDE WALL,FRONT WALL PANEL&BACK WALL PANEL
65MM FIREPROOF AND FLAME-RETARDANT INSULATION SANDWICH PANEL/COLOR STEEL PLATE WITH GLASSFILAMENT COTTON
INTERNAL PARTITION
55M ENVIRONMENTALLY FRIENDLY INSULATION MATERIALS


FLOOR
MIDDLE FLOOR
18MM FIREPROOF GLASS MAGNESIUM BOARD/FIREPROOF CEMENT FIBER FLOORING
FLOOR ON BOTH SIDES
18MM BAMBOO FLOORING/THICK BAMBOO PLYWOOD



ELECTRICIAL SYSTEM
(CUSTOMIZED)
ELECTRICAL WIRING,INSTALLING IN STRICT ACCORDANCE WITH THE MOISTURE-PROOF SPECIFICATIONS,ALL ELECTRICAL PRODUCTS SHALL COMPLY WITH CERTIFICATION.
CONNECT THE CIRCUIT ACCORDING TO THE CIRCUIT ENGINEERING SPECIFICATION,INDOOR:2 LED LIGHTS,2 CEILIING LAMP,3 FIVE- HOLE SINGLE SOCKET,1 SINGLE SWITCH,3 TEN HOLE SOCKET,1 AIR CONDITIONER SOCKET,1 20A-LEAKAGE PROTECTOR.VOLTAGE 220V,50HZ
WE CAN CUSTOMIZE CIRCUITS THAT MEET CERTIFICATION REQUIREMENTS ACCORDING TO DIFFERENT COUNTRIES.
DOOR
BROKEN BRIDGE ALUMINUM ENTRANCE DOOR (WITH PASSWORD LOCK),BEDROOM METAL SWING DOOR
WINDOWS
ALUMINUM ALLOY WINDOWS,DOUBLE-LAYER INSULATED TEMPERED GLASS

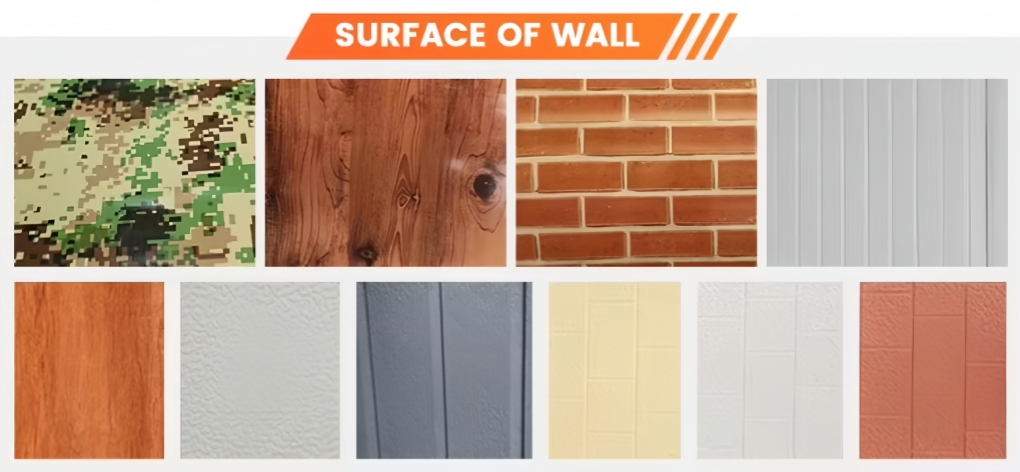

Wall of 2 Story Expandable Prefabricated Container House

The wall surface can choose a variety of patterns, such as camouflage, wood grain, brick grain, including a variety of bionic natural color, for you to choose. Or you can also provide your requirements, we can customize for you.

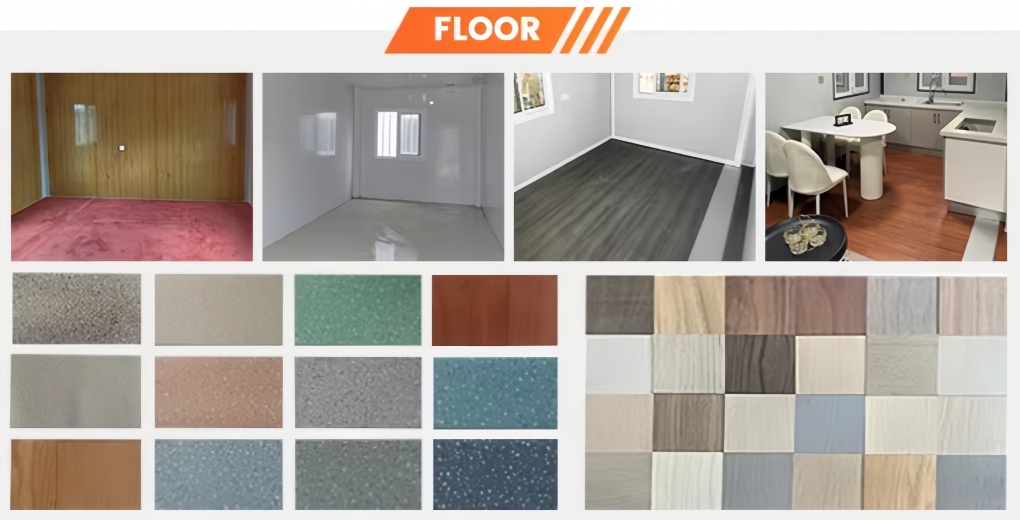

Floor decoration of Two Layers Portable Expandable House

As for the ground, we generally use 18mm thick cement fiberboard, which is of excellent quality and not easy to crack, to ensure the safety of container room and improve the durability of use. Floor decoration is commonly used floor leather, color changes with your like, or can be replaced with different color wood floor, or according to your needs.


Our Advantages

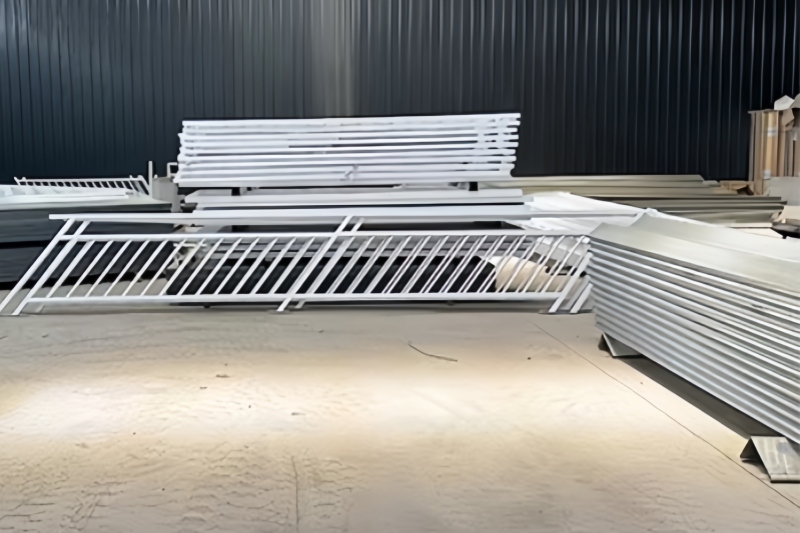

01 Steel structure:

Easy to disassemble, easy to ship, increase service life, all use environmentally friendly materials, can be recycled and reused.

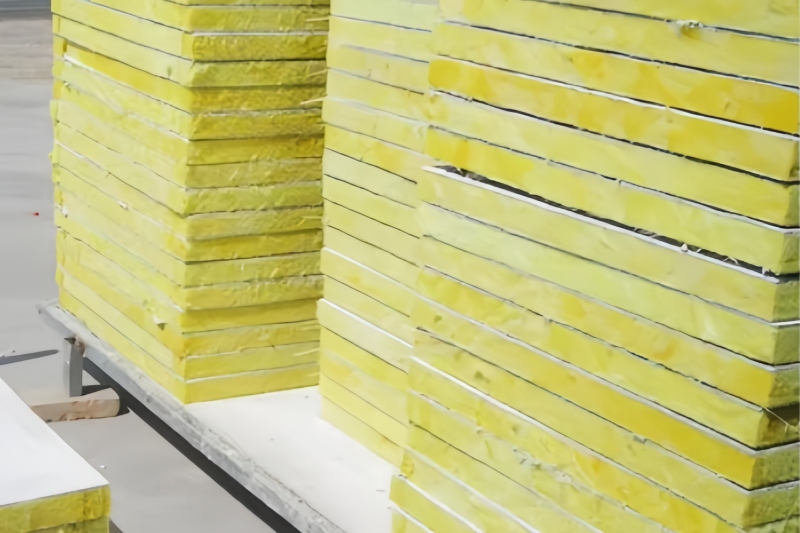

02 Fireproof rock wool board:

Strong stability, good fire performance, strong thermal insulation, improve the comfort of living, higher safety level.

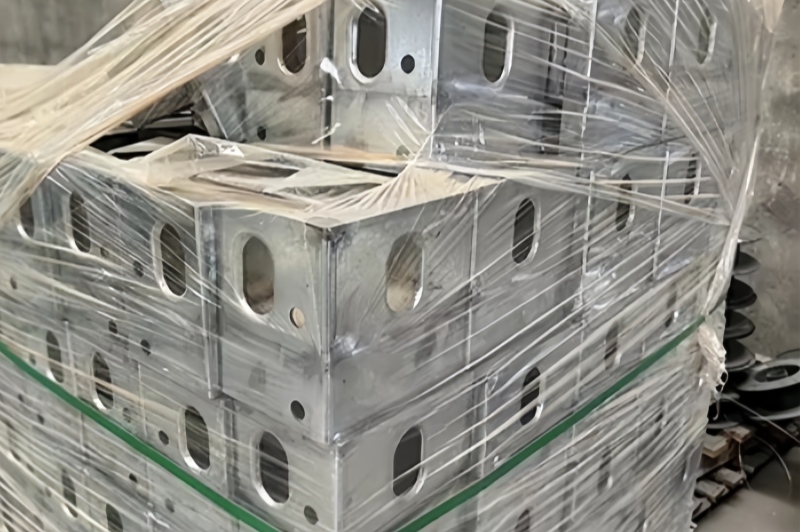

03 Corner:

Play a fixed role, can make the house as a whole more solid, more durable, service life greatly extended.

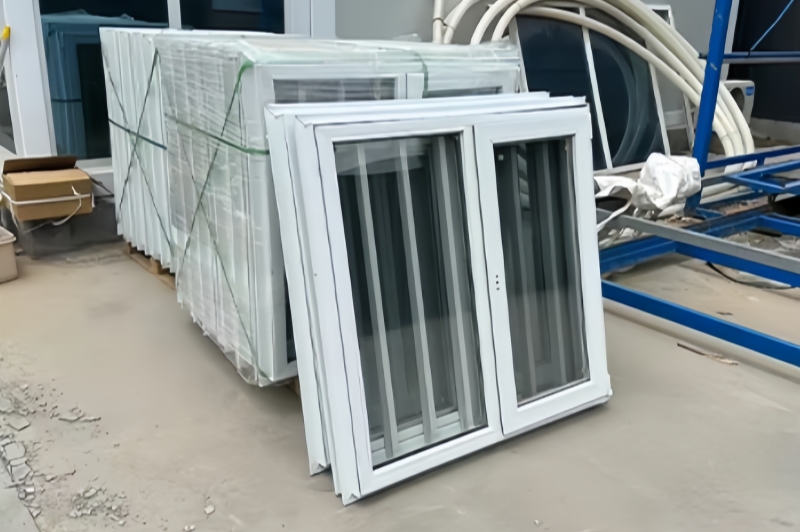

04 High quality aluminum doors and Windows:

Rugged, not easily deformed, can withstand bad weather, external security fence reinforcement, not easy to be stolen.

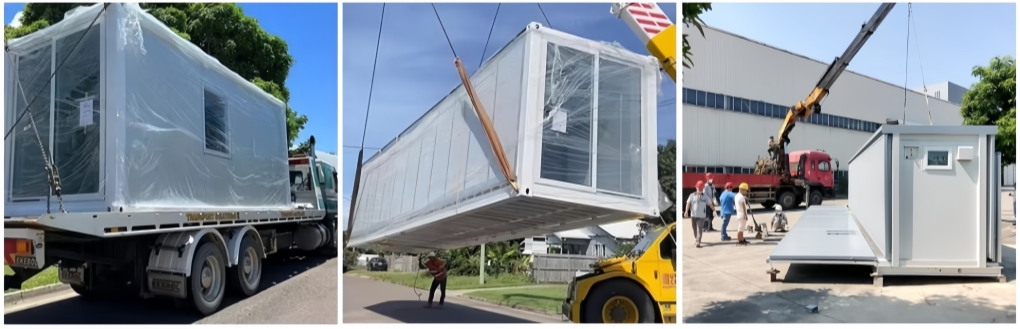

Packaging:



We will provide waterproof sealed packaging for each expandable folding house at the factory to ensure its integrity and cleanliness during transportation,and strictly follow the sea freight packaging requirements for final container loading.

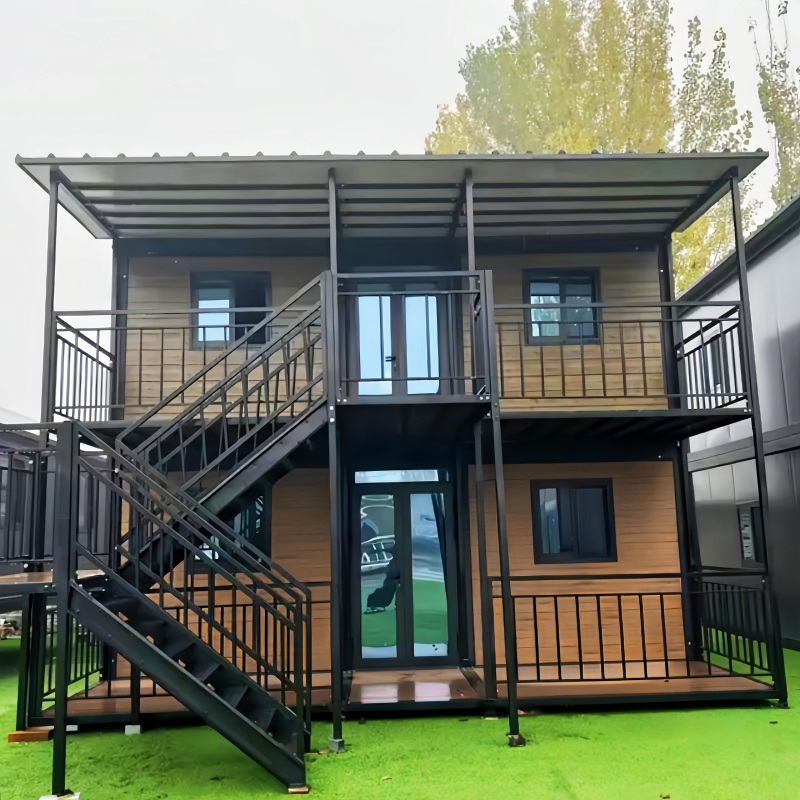

Customer Photos:

FAQ:

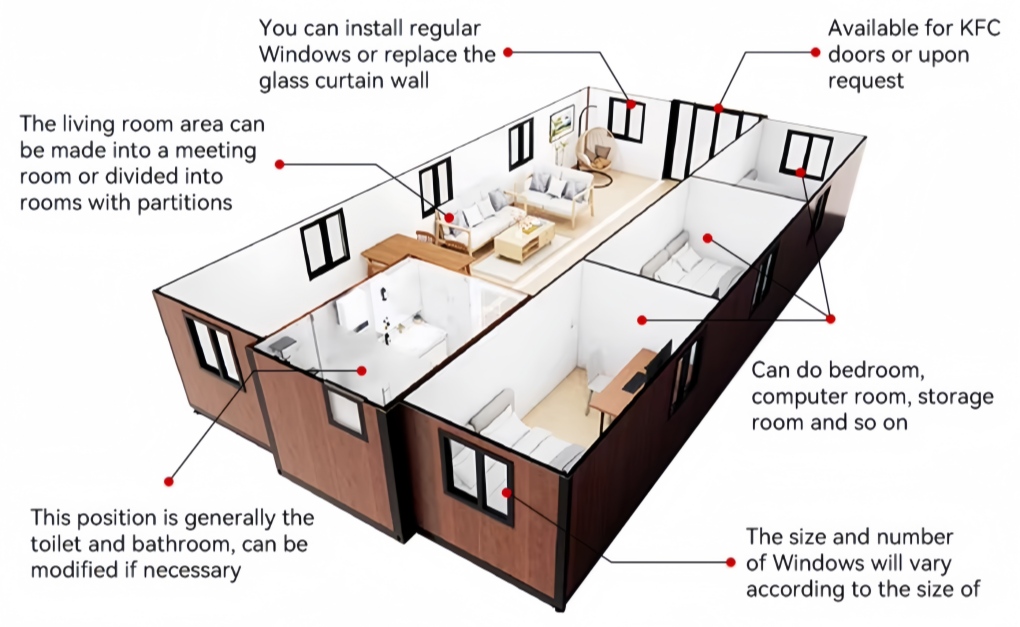

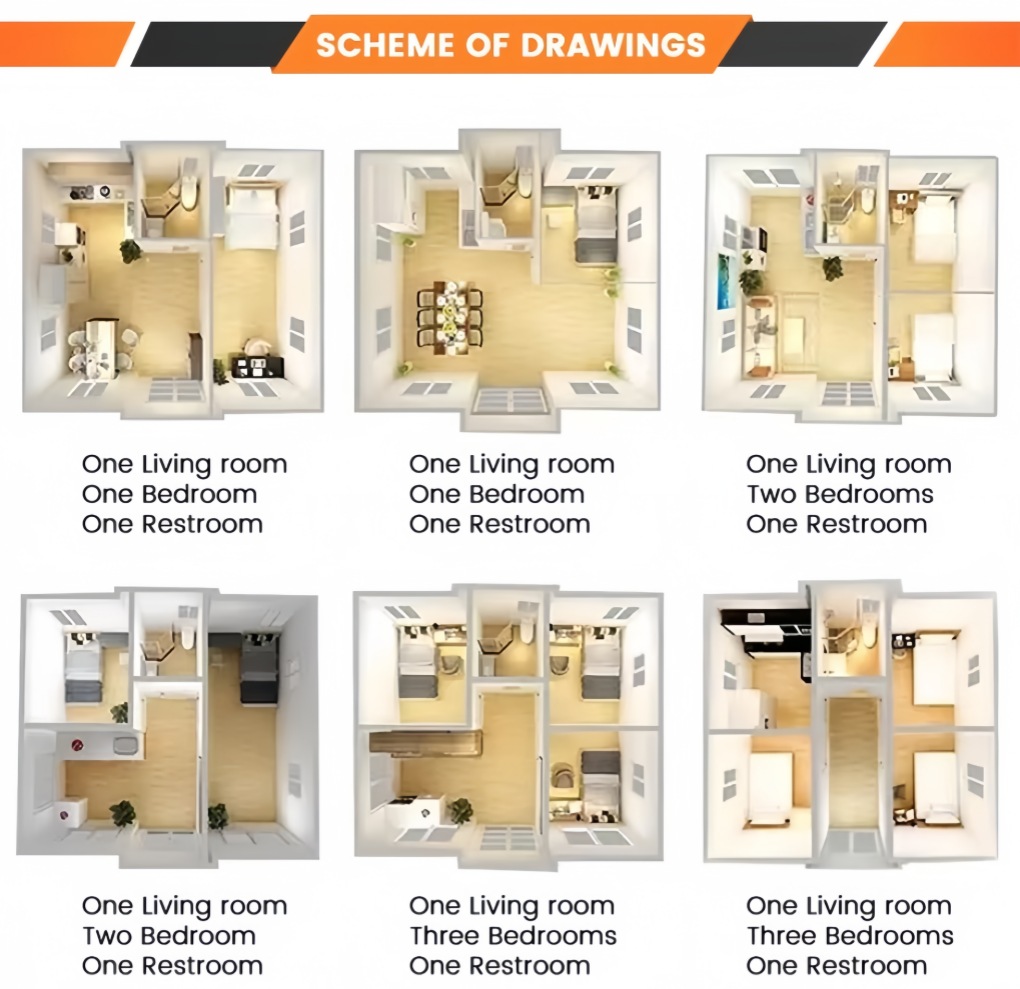

1. Can the interior layout be customized for 40ft expandable container houses for sale?

Yes, layouts can be tailored to include bedrooms, bathrooms, kitchens, or offices as per customer requirements.

2. What color options are available for 40ft container homes?

The exterior and interior colors can be customized to suit preferences or brand requirements.

3. How are prefab container living houses transported?

They are shipped in a folded, compact state and can be easily transported by truck, ship, or rail.

4. How long does it take to install an expandable foldable container home?

Installation usually takes 2-4 hours and requires minimal labor and tools.

5. Do I need a crane for installation?

A crane or forklift may be required for unloading and initial placement, depending on the size and model.

6. How durable are China expandable container houses price?

They are designed to withstand harsh environments, including heavy wind, rain, and snow, with a lifespan of 15-25 years with proper maintenance.
